Austrong C150-Shaped

Product: C100, C150, C200

Specification: 100mm, 150mm, 200mm

Colour: White (RAL)

Material: Aluminum 1100 - 3003 (H24, stainless steel)

Thickness: 0.6mm

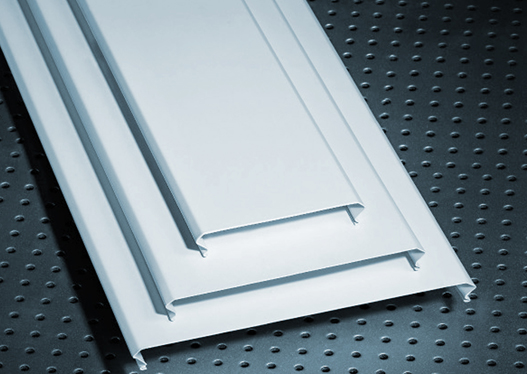

System C-Shaped aluminum ceiling Austrong closed, coordinated from three panels with different width, is distinguished from other types of ceiling by edge chamfering, when installed will show perceptible smooth. The wide-ranging panels are linked to the same uniform bones. Ceiling panels made of enamelled aluminum thickness from 0.5 to 0.6mm, are manufactured in the length required, up to 6000 mm. Bone standard bar length is 3000 mm. The panels can be connected together by connecting plates detail, while the bones are connected together by connecting bone detail. The splint rim is used as a standard envelope, ensuring aesthetic.

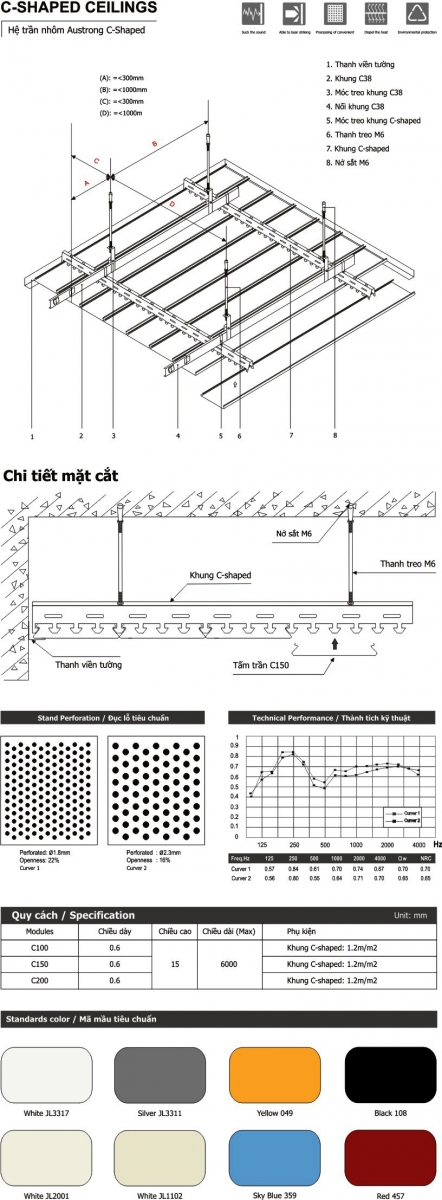

Product Structure:
