Austrong Multi-B

Product Code: B30, B80, B130, B180

Specification: 80mm, 130mm, 180mm

Colour: White (RAL)

Material: Aluminum 1100 - 3003 (H24, stainless steel)

Thickness: 0.6mm

System B-Shaped aluminum ceiling panels form Austrong including box with 4 different width (from 30mm to 180mm) is associated with bone and unified system that allows use of the ceiling panels with different width and height together in a ceiling area. Ceiling panels made of enamelled aluminum with durable advantages, lightweight and reusable. Length plates are manufactured on request, up to 6000mm, can be connected to each other by connecting plate details. Between the sheets with 20mm wide-open circuit, sealed by a V or U shape Roong sink Thanh Roong link is constructed, easily removable by hand without the need for specialized equipment. The bare bones black bar, made of enamelled steel or aluminum 0.5mm thick enamelled 0.6mm thick with eye attach bone to allow for modular ceiling panels are 50mm or multiples of it. Bone standard bar length is 3000 mm, can be joined together using bone connection details. The splint rim is used as a standard envelope, ensuring aesthetic.

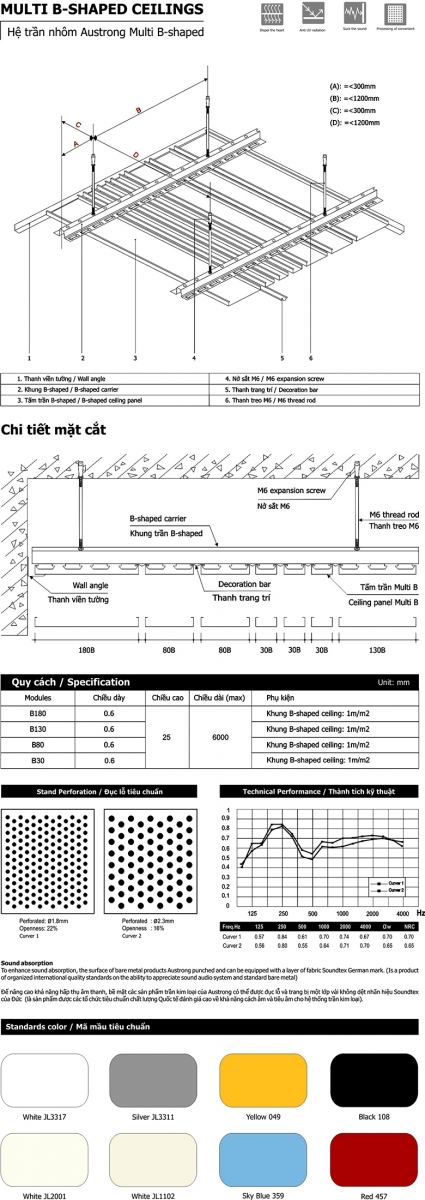

Structure Producs:
